Product Details
YangSen offers remarkable products, fast services, and punctual delivery time.
YSV-1265
Keywords:
YANGSEN NC EQUIPMENT
Category:

Hotline:
- Details

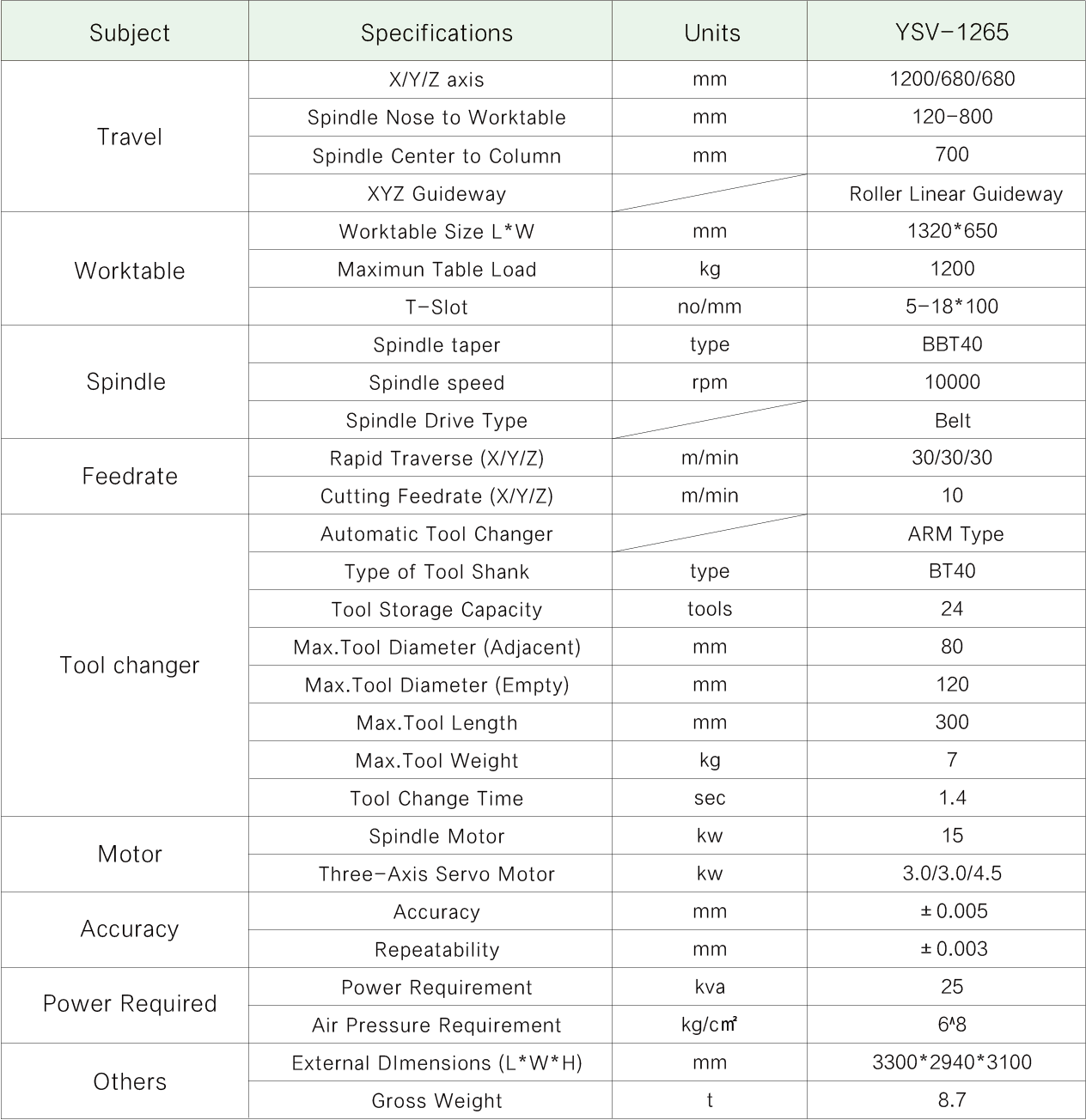

- Parameter
- Configuration
-
- Commodity name: YSV-1265
1. Japan THK/ Rexroth line rail, Y/Z line rail width of 45mm;
2. Super wide base, stable as lount Tai:
3. Double-layer arm structure of force column, stiffening 1.5 times:
4.X axis slide seat large span, "human" font column design, stable as Taishan.
5. The thre-axis adopts THK outer diameter 40mmc3 levelsrew, the thre-axs adopts NKonoinal beanng (3062).3+2 mode, pre-dawing treatment o prevent themmal displacement
6. 150mm high rigidity BBT40 low nose spindle, ring spray design;
7. Using Taiwan original ultra-high speed punching cylinder, punching time can reach 0.28$:
8. The machine bed is made of precision HT300 hiah qrade cast iron. -
-
